J. Hasbun's Open Source Physics (OSP) Activities - Java Applications
(Note: Open Source Physics code is being distributed
under the GNU GPL [http://www.gnu.org/licenses/gpl.html]
license. Also to run the applications, the Java engine is needed from http://java.sun.com/getjava. Programmers make use
of the Java development kit which is located here: http://java.sun.com/javase/
and can be used to compile actaul Java code. Much base code has already been developed in
what is referred to as the OSP framework library and is very convinient for developing
applications. It is available from http://www.opensourcephysics.org/
or http://www.compadre.org/osp/. The eclipse front end java compiler is very useful for
debugging code and the workspace associated with the OSP library can be obtained from http://www.compadre.org/osp/webdocs/Programming.cfm?t=Environment.)
My Open Source Physics activities began during the Summer Workshops of
2003 and 2004 at Davidson College, NC amd Eckerd College, FL, with Wolfgang
Christian, Mario Belloni, and Anne Cox. Below are all the accomplishments achieved since.
|
| Textbooks 1) Classical Mechanics with
Matlab Applications (1st Ed) by Javier E. Hasbun (Jones & Bartlett Learning, 2009)
incorporates Open Source Physics as described in the Computation
in Classical Mechanics poster of the Summer 2007 AAPT topical session on
Computational Physics for Upper-Level Physics Programs (Davidson College, July 27-28.)
The corresponding OSP support is found here. Please refer to the book
for the specifics of what the applications are about, including the equations and the
physics involved. (see below for the 2nd edition of this text)
The links associated with the classical mechanics text are:
http://www.compadre.org/portal/items/detail.cfm?ID=7495
http://www.mathworks.com/support/books/book48903.html
http://www.mathworks.com/matlabcentral/fileexchange/20579
http://www.mathworks.com/
A current list of corrections to the first edition of the text is kept here: corrections.pdf
See also the publication by T. Timberlake and J. Hasbun ajp_vol76_4&5_2008.
The chapter applications can be run from the mechanics.htm file from the Mechanics_Java_applications directory from
which the main jar file can be downloded along with individual htm driver files. All these
applications are available in a single zip file Mechanics_Java_applications.zip as well.
The Launcher way to run all the applications is the file mechanics.htm from
the launcher_way_Mechanics_Java_applications
directory from which the jar file and the driver htm file can be obtained and downloaded
in case it is not launching from this server. It might run better from your own machine.
When the Launcher opens, click on Launcher, then click on programs, then click of each
chapter "o-" icon which shows the clickable individual applications. The source
code is available under the OSP concept in the form of eclipse_workspace_mechanics.zip which also
contains the OSP library used to compile the programs (version 20071116) and which can be
compiled with Eclipse, an open source developing platform (http://www.eclipse.org/). If you have any problems,
send me an e-mail (see address below).
2) A First Course in Computational Physics, Second Edition by Paul DeVries and Javier
E. Hasbun (Jones & Bartlett Learning, 2011) uses Matlab
and, if enough interest develops, it might be possible to create java support for it.
The links associated with the computational physics text are:
http://www.mathworks.com/support/books/book49296.html
http://www.mathworks.com/
The text is out of print but people who are interested in using it can contact us. Some
copies are still found at Amazon.
3) A second edition of Classical Mechanics with Matlab Applications by Javier E. Hasbun
(2018) has now been published and is located here: https://www.amazon.com/Classical-Mechanics-Applications-Javier-Hasbun/dp/1722299282/ref=sr_1_3?ie=UTF8&qid=1533315234&sr=8-3&keywords=javier+hasbun
A kindle version of it also exists.
4) Introductory Solid State Physics with MATLAB Applications by Javier E. Hasbun,
Trinanjan Datta has been published (2020). This text, published under CRC press, is found
here:
https://www.routledge.com/Introductory-Solid-State-Physics-with-MATLAB-Applications/Hasbun-Datta/p/book/9781466512306
and also here: https://www.mathworks.com/academia/books/introductory-solid-state-physics-with-matlab-applications-hasbun.html
Our current errata can be found here: TDErratum.pdf
|
| Available OSP applications follow. Note: In most of
the programs below, "Initilize" before pressing "start". |
| 1 |
2003 Summer Workshop Results |
Instructional materials developed. This includes a particular set of
animations of a constant acceleration motion example (based on Illustration 2.4 of Physlet
Physics by Christian and Belloni - 2003), and EJS
variable acceleration simulations. While the results can be seen for the animations and
the simulations, the actual xml-simulation files are hard_wall_collision_1D.xml
(with introduction hard_wall_collision_1D_Intro_Page.html)
, and lennard_jones.xml (with explanation lennard_jones_Intro_Page.html). |
| 2 |
jh_DatasetApp.java |
OSP Java development included the initial (rough shape) Java code J.
Hasbun wrote on the Boltzman transport simulation based on the matlab version matlab_boltz.m which uses a Boltzman shape startup conditions.
There was another version of this matlab code presented at the workshop by J. Hasbun as
well, based on a Fermi distribution initial shape; i.,e., matlab_boltz2.m. |
| 3 |
Brownian_jhSimulation.html |
Hasbun also collaborated with Morten Brydensholt in a Brownian Motion EJS
simulation. The details of this work can be found in Wolfgang Christian and Mario
Belloni's Fall
2003 AAPT talk. However, Hasbun has recently developed this slightly different version
of the Brownian motion example. It has explanatory comments here: Brownian_jh_Intro_Page.html. Its EJS source code is
Brownian_jh.xml. |
| 4 |
Boltzm_applet_App.htm |
My latest work involves a much improved version of the above mentioned
Boltzman transport java simulation. This new version incorporated the initial jh_DatasetApp.java but using the correct algorithm for
solving the partial differential Boltzmann transport equation. This version was turned in
to Wolfgang Christian during the Fall of 2003 as part of my continued contribution and can
be found at: jahasbun_osp_BoltzApp.zip.
However, a much more improved version has recently been developed. This version can be run
as an applet through the use of the "WrapperApplet" concept of Wolfgang
Christian. This new version, Boltzm_applet_App.htm,
additionally incorporates the user input. It's source code is Boltzm_applet_App.java. This simulation, however, still
needs improvements since for a value of an electric field greater than about 0.2 the
simulation develops instabilities due to the algorithm used. Improvements are in progress
as detailed below. Other source code here: /~jhasbun/osp/QE/ |
| 5 |
RSatelliteSimulation.html |
Recently I modified a version of an EJS
satellite example (see projectileNsatellite_e.xml in the distribution of EJS) that was
originally written by Fu-Kwun
Hwang. To this simulation I added friction due to the air density variation as a
function of height, in addition to the inclusion of thrust which depends on the rate at
which mass is burned and the speed at which the gas is ejected. This actual simulation is RSatelliteSimulation.html with comments RSatellite_author.html and whose EJS source file is RSatellite.xml. |
| 6 |
projectile_motion0Simulation.html |
A simple but useful EJS projectile
motion simulation I wrote is projectile_motion0Simulation.html
which uses the simple kinematic equations of motion (see projectile_motion0_Intro_Page.html )to track
a projectile with variable initial speed, initial angle, initial height, and gravitational
surface acceleration. The source code is projectile_motion0.xml.Notice
that the "make your own simulations" using EJS is complementary and yet
very powerful when compared to the kinds of things we can do with the "ready
made" physlets of Wolfgang Christian and Mario Belloni ("Physlets," 2001
and "Physlet Physics," 2004, both by Prentice Hall). For example, regarding
projectile motion, take a look at the fig.15 demostration of "Physlets" : WC&MB2001_3.4.fig_15.html, and then take a
look at the illustration 3.4: WC&MB_2004_illustration3_4.html
of "Physlet Physics". Each concept is very useful in my view. |
| 7 |
Boltzmn_applet_App.htm |
Hasbun submitted an abstract to the 2004 March meeting of the American
Physical Society regarding the latest improvements on the Boltzman Transport simulation.
The title of this abstract is "A Boltzmann Transport
Simulation Using Open Source Physics Simulation." The talk can be found in the
APS Bull. Session W38 - Focus Session: Computers in Physics Education. Thursday
afternoon, March 25
520E, Palais des Congres [W38.007] (2004). The applet can be run from Boltzmn_applet_App.htm and the source code is located
here: Boltzmn_applet_App.java.The actual talk is Boltzmann.pdf and which details the approach to the solution.
Other source code here: /~jhasbun/osp/QE/ |
| 8 |
y_vs_x_line_graph.htm |
In an effort to help in general experiments that make use of linear fits
of data sets, this modified version of a linear regression graph y_vs_x_line_graph.htm was developed. |
| 9 |
LRegressionApp.htm |
J. Hasbun in collaboration with his student, Maxwell Perkins, developed a
java version of a linear fitting program. This is LRegressionApp.htm
which can do power and exponential fits, in addition to the regular linear fitting. The
OSP source code is available here LRegressionApp.java.
This version was stimulated by the linear regression applet
"y_vs_x_line_graph.htm" mentioned above. Other source code here: /~jhasbun/osp/QE/ |
| 10 |
QRegressionApp.htm |
A version of linear regression with quadratic fitting included and which
improves up on the above LRegressionApp is QRegressionApp.htm
whose source code is QRegressionApp.java. Other source
code here: /~jhasbun/osp/QE/ |
| 11 |
QERegressionApp.htm |
A much more improved version of linear regression with quadratic and some
non-linear curve fitting with unlimited data input-output handling has been written with
the help of my student Maxwell Perkins. The applet version is QERegressionApp.htm. This version involved the modification
of some of the methods of the original library found under display, controls, and applets.
The complete source code is found here: /~jhasbun/osp/QE/.
Max Perkins was sponsored by the NASA Space Grant Consortium through Dr. Ben de Mayo of
the Physics Department at the University of West Georgia -Spring 2004. |
| 12 |
cycloidApp.htm |

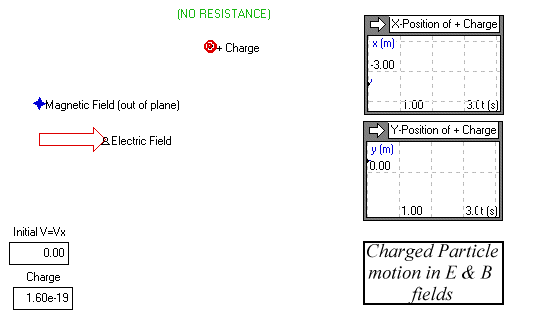

Sometime ago, Hasbun developed the animated gif /~jhasbun/charge.gif
in order to show the behavior of a charged particle in crossed electric and magnetic
fields. OSP has made it possible for us to develop a java applet version of this that
accepts user input. The applet is cycloidApp.htm, and its
source code is CycloidApp.java. Other supporting code is as
in item 11 above. The student Max Perkins while working with Hasbun (sponsored by the NASA
Space Grant Consortium through Dr. Ben de Mayo) wrote this code. Other source code here: /~jhasbun/osp/QE/ |
| 13 |
CycloidAnimation2App.htm |
An animated version of the cycloidic motion of charged particles in the
presence of electric and magnetic fields was created during the workshop of 2004 at Eckerd
College. This animation is for the purpose of looking at the effect of mass, charge, and
the fields. Here the coupled differential equations are solved numerically. The applet
source code is here:CycloidAnimation2App.java, and
CycloidAnimation.java. Other source code here: /~jhasbun/osp/QE/ |
| 14 |
KacModelApp.htm |
During the same 2004 Summer workshop, Dan Schroeder of Weber State Univ.
wrote a java program for the relaxation of a gas to equilibrium. J. Hasbun modified that
program to provide a full comparison with the Maxwell-Boltzman distribution. The applet
source code of this applet is here:KacModelApp.java. Other
source code here: /~jhasbun/osp/QE/
|
| 15 |
SchrodApp.htm |
During the same 2004 Summer workshop, Kipton Barros in Collaboration with
J. Hasbun developed a program to solve the Schrodinger equation for an infinite triangular
shape well. J. Hasbun modified that program to include a host of square wells in addition
to various triangular wells, depending on the input. The source code of this applet is
here:SchrodApp.java. Other source code here: /~jhasbun/osp/QE/ |
| 16 |
planck.htm, wien.htm |
These two programs are not necessarily OSP, but are very useful in
illustrating Plank's Radiation Law. They were obtained from Mike Guidry's site at the
University of Tennesee. J. Hasbun (with permission) recompiled them with a slight
modification from the originals. The source code of these applets is here: planck.java and wien.java. If
anyone converts them to OSP, please let me know. This is related to Black Body radiation
as shown in the pictures here.
|
| 17 |
QM_StepApp.htm |
This program was written for the purpose of illustrating the step
potential in quantum mechanics. The analytic formulas are used. The real, the imaginary
and the probability density are plotted. One can vary the energy and the potential step
height to see the effects of experimenting with them. The source code of this applet is
here: QM_StepApp.java We had to use complex numbers, so the
complex java class from netlib.org was used. Of course, the code is still covered under
the GNU license arrangements /~jhasbun/osp/complex/ |
| 18 |
Potential_Step.htm
Potential_Barrier.htm
Potential_Well.htm
Fourier.htm
Calendar.htm
reaction.htm
Interaction.htm |
Useful non-OSP per say, whose authors are in included within the code.
For Quantum Mechanics: Pot_Step.java,
barrier.java, well.java, in addition to complex.java,
For Mathematical Physics: Fourier.java,
For general use: Calendar.java.
You can measure your reaction time with the applet due to Fu-Kwun Hwang. The source is reactionTime.java,
including redCar.gif, greenLight.gif, redLight.gif, and yellowLight.gif.
The wave "Interaction" applet is due to Konstantin Lukin, and the
source code consists of Box.java,
MyMath.java, SineWave.java, SumWaves.java, Handle.java, and the
main applet Interaction.java.
|
| 19 |
Cycloid3dApp.htm
LsqfitApp.htm |
Hasbun submitted an abstract to the 2005 March meeting of the American
Physical Society(APS Bull. Session S17-7). The title of this abstract is "Classroom
Physics Applications Using The Open Source Physics (OSP) Library Open Source
Physics." Here are pdf and doc versions of the presentation (March05_APS_OSP.pdf, March05_APS_OSP.doc)
The talk was given in the focus Session: Issues in Physics Education on Wednesday
afternoon, March 23, at the Los Angeles Convention Center. Three applet were presented,
one on the CycloidAnimation2App.htm discussed above
whose code is CycloidAnimation2App.java, and these
two more. The Cycloid3dApp.htm deals with the 3 dimensional
version of the charged particle in general electric and magnetic fields, whose code is Cycloid3dApp.java and Cycloid3d.java
. The LsqfitApp.htm is a new and more general 17 function
curve fitter that can accept as well as read data. The full code for the fitter is here /~jhasbun/osp/curve_fitter/
|
| 20 |
projectile_motionSimulation.html
projectile_motion2Simulation.html |
A more useful EJS projectile motion
simulation I wrote is projectile_motionSimulation.html
which solve the projectile differential equations of motion numerically and they include
friction. One can (see projectile_motion_Intro_Page.html
)to track a projectile with variable initial speed, initial angle, initial height,
gravitational acceleration, integration step, projectile mass, and coefficient of
friction. The source code is projectile_motion.xml.
The slightly more customizable simulation is projectile_motion2Simulation.html
with similar explanation projectile_motion2_Intro_Page.html
and source projectile_motion2.xml. |
| 21 |
water4_animate_vibrate.htm
|
The water molecule vibrational modes can be seen through water4_animate_vibrate.htm, it uses the
open source molecular viewer Jmol version
11.0.If you are running Microsoft Internet Explorer on the Windows operating system you
should upgrade to the Sun Java Virtual Machine by visiting www.java.com.
The standalone Jmol application requires Java 1.4 or higher. The latest Java Platform is recommended. I think that
all content in this lecture is open source. Jmol can read the non-open source package Gaussian output file results water4.out obtained by running Gaussian on the input
file water4.gjf |
| 22 |
LinearEqsApp.htm
elliptical_orbitsApp.htm
EigenValuesApp.htm |
For the programs that involve matrices, the input can be changed by double
clicking the matrix, click again where a different input is desired and press return to
acknowledge the change. The Linear equation solver LinearEqsApp
is presently set to do up to a 10x10 system. The code is here: LinearEqsApp.java.
The program elliptical_orbitsApp is an elliptical
orbit illustrator with variable eccentricity, and its code is elliptical_orbitsApp.java. The eigenvalue/eigenvector
solver EigenValuesApp can presently do up to a 6x6 matrix
system with code EigenValuesApp.java. |
| 23 |
StriatedMuscleTansientApp.htm
StriatedMuscleSteadyStateApp.htm
|
These programs are work in progress (paper sunmitted) in collaboration
with Henry Zot (Biology) and Minh Van Nguyen (Mathematics). They were developed for the
purpose of simulating a system of coupled DE's for striated muscle contraction. The
system of equations is studied in the transient and steady states. The source code for the
transient state is StriatedMuscleTansientApp.java
and for the steady state is StriatedMuscleSteadyStateApp.java. |
| 24 |
ForcedOscillatorApp.htm
ForcedOsAnimationApp.htm
|
The forced harmonic oscillator is a good example of a system with
resonance. The ForcedOscillator application allows the user to use a slider bar to change
the frequency of the driving force. The mass' amplitude of vibration as well as its phase
depend on the driving frequency. The ForcedOsAnimation actually shows how the mass at the
end of the spring responds to the force as the frequency is varied in real time. The
source code for each is here ForcedOscillatorApp.java
and here ForcedOsAnimationApp.java. |
| 25 |
nuclear_binary_system_EJS.html
|
This is a nuclear physics problem that J. E. Hasbun and his student
Benjamin E. Hogan developed. It was originally developed as an EJS simulation of a nucleus treated as two particles. The
outer particle is one of the nucleons, here a neutron. The inner particle is the remaining
core. The simulation treats their interaction through a force derived from the the
Woods-Saxon potential. The original EJS source code is
here nuclear_binary_system_EJS.xml. Here are
the details of the simulation nuclear_binary_system_EJS_Intro.html.
The jar file is here nuclear_binary_system_EJS.jar
|
| 26 |
Resonance_video-2013-05-30-15-34-14.mp4
|
This is a video on resonance with sample planar sheet of glass whose
resonance frequency is matched with a resonating box. This is the subject of a paper on
demonstrating resonance using the resonance box built by my students Daniel
Sanchez-Carretero and Anton Hud. (The video is large so wait for it to load.) |
| 27 |
Millikan_Oil_Drop_Experiment.htm
|
This is a simulation for the Millikan oil drop experiment that J. E.
Hasbun and his student Benjamin E. Hogan developed. It was originally developed as an EJS simulation of the actual apparatus. The simulation
allows the user to select a droplet to work with and once its charge is found, the
simulated experiment allows the user to continue and measure the velocities from which the
charge can be found. The user can vary the charge by ionizing the drop as well. The data
can be saved to a file to be analyzed separately (see the matlab file below) if the jar
program is downloaded (see comments below). The original EJS
source code is here Millikan_Oil_Drop_Experiment.xml.
The details of the simulation can be read in the introduction within the source code that
is interpreted with EJS as well here Millikan_Oil_Drop_Experiment_Intro.html.
The jar file can be downloaded from here Millikan_Oil_Drop_Experiment.jar
and which can be executed with java by clicking on the downloaded file or executing it by
typing:
"java -jar Millikan_Oil_Drop_Experiment.jar". The jar file is also an archive
and the source and other files can be unpacked separately.
The Matlab file Millikan_Oil_Drop_Experiment_Analysis.m
can be run using http://www.mathworks.com/Matlab
or https://www.gnu.org/software/octave/
in order to analyze the data that is generated by the downloaded jar file if saved as a
.txt formatted file. |
